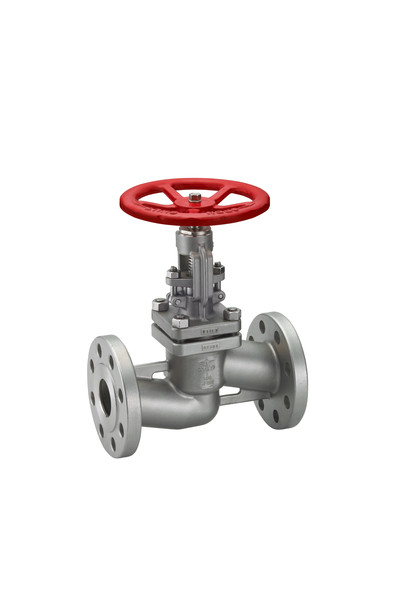

Globe Valve

產(chǎn)品名稱：Globe Valve
產(chǎn)品型號(hào)：

適用範(fàn)圍：

Design Description :
Outside Screw and Yoke
Bolted Bonnet
Rising Stem and Handwheel (The size of Impact-Hammer Handwheel depends on pressure rating)
Yoke Integral with Bonnet
Loose Disc
Renewable Seat Rings for Cast Stainless Steel 150LB, 300LB and Integral Seat and Back Seat for others
Available with Gear Operator
Flanged Ends
Buttwelding Ends

Specification :
Type : Globe Valve
Size : 1/2"~16" (depends on the pressure rating and Body Material)
Body Material : WCB, WC6, LCB, CF8, CF8M, CF3M
Pressure Rating : ANSI 150LB, 300LB, 600LB
Connection : RF
Test Pressure to API 598
